ToC
ESLint 的规则
ESLint
的规则配置方法主要分两种,一种是直接设置规则的 error
warn
off
, 一种就是以数组的形式来设置规则的开启条件,以及需要附加的配置项,比如:
1{2 rules: {3 // 代码结尾的分号4 semi: 'off', // 值有 `error` 或 `2`、`warn` 或 `1`、`off` 或 `0`5 // 字符串的单、双引号6 quotes: ['error', 'single'] // 或是以数组的形式来进行配置规则的选项,选项还可以以对象的形式呈现7 }8}
rules
中的每一个 key
即表示一条风格规则,我们可以思考一下如何去实现这些规则约束。
ESLint 的核心规则
先看一下简单的规则: no-with
:
1module.exports = {2 meta: {3 // 包含规则的元数据4 // 指示规则的类型,值为 "problem"、"suggestion" 或 "layout"5 type: "suggestion",6
7 docs: {8 // 对 ESLint 核心规则来说是必需的9 description: "disallow `with` statements", // 提供规则的简短描述在规则首页展示10 // category (string) 指定规则在规则首页处于的分类28 collapsed lines
11 recommended: true, // 配置文件中的 "extends": "ESLint:recommended"属性是否启用该规则12 url: "https://ESLint.org/docs/rules/no-with", // 指定可以访问完整文档的 url13 },14
15 // fixable // 如果没有 fixable 属性,即使规则实现了 fix 功能,ESLint 也不会进行修复。如果规则不是可修复的,就省略 fixable 属性。16
17 schema: [], // 指定该选项 这样的 ESLint 可以避免无效的规则配置18
19 // deprecated (boolean) 表明规则是已被弃用。如果规则尚未被弃用,你可以省略 deprecated 属性。20
21 messages: {22 unexpectedWith: "Unexpected use of 'with' statement.",23 },24 },25 // create (function) 返回一个对象,其中包含了 ESLint 在遍历 js 代码的抽象语法树 AST (ESTree 定义的 AST) 时,用来访问节点的方法。26 create(context) {27 // 如果一个 key 是个节点类型或 selector,在 向下 遍历树时,ESLint 调用 visitor 函数28 // 如果一个 key 是个节点类型或 selector,并带有 :exit,在 向上 遍历树时,ESLint 调用 visitor 函数29 // 如果一个 key 是个事件名字,ESLint 为代码路径分析调用 handler 函数30 // selector 类型可以到 estree 查找31 return {32 // 入参为节点node33 WithStatement(node) {34 context.report({ node, messageId: "unexpectedWith" });35 },36 };37 },38};
规则由两部分组成: meta
create
;
meta
meta
对象是描述规则的元数据, 包括了规则的 类型
文档
是否可修复
等信息.
create
create
函数返回一个对象包含了 ESLint 在遍历 JavaScript 代码的抽象语法树(AST)
(ESTree 定义的 AST) 时, 用来访问节点的方法, 入参为该节点.
- 如果一个 key 是个节点类型或 selector,在 向下 遍历树时,ESLint 调用 visitor 函数
- 如果一个 key 是个节点类型或 selector,并带有
:exit
,在 向上 遍历树时,ESLint 调用 visitor 函数 - 如果一个 key 是个事件名字,ESLint 为 代码路径分析 调用 handler 函数
ESLint 命令的执行
在 package.json 里配置 bin
1{2 "name": "eslint",3 "bin": {4 "eslint": "bin/eslint.js"5 },6 "scripts": {7 // ...8 }9}
1// 代码有删减2(async function main() {3 // 如果在执行的时候带有 --init 参数则进行初始化 eslint 的配置4 if (process.argv.includes("--init")) {5 // `eslint --init` has been moved to `@eslint/create-config`6 console.warn(7 "You can also run this command directly using 'npm init @eslint/config'."8 );9
10 const spawn = require("cross-spawn");13 collapsed lines
11 spawn.sync("npm", ["init", "@eslint/config"], {12 encoding: "utf8",13 stdio: "inherit",14 });15 return;16 }17
18 // 没有附带 --init 参数则检查本地代码19 process.exitCode = await require("../lib/cli").execute(20 process.argv,21 process.argv.includes("--stdin") ? await readStdin() : null22 );23})();

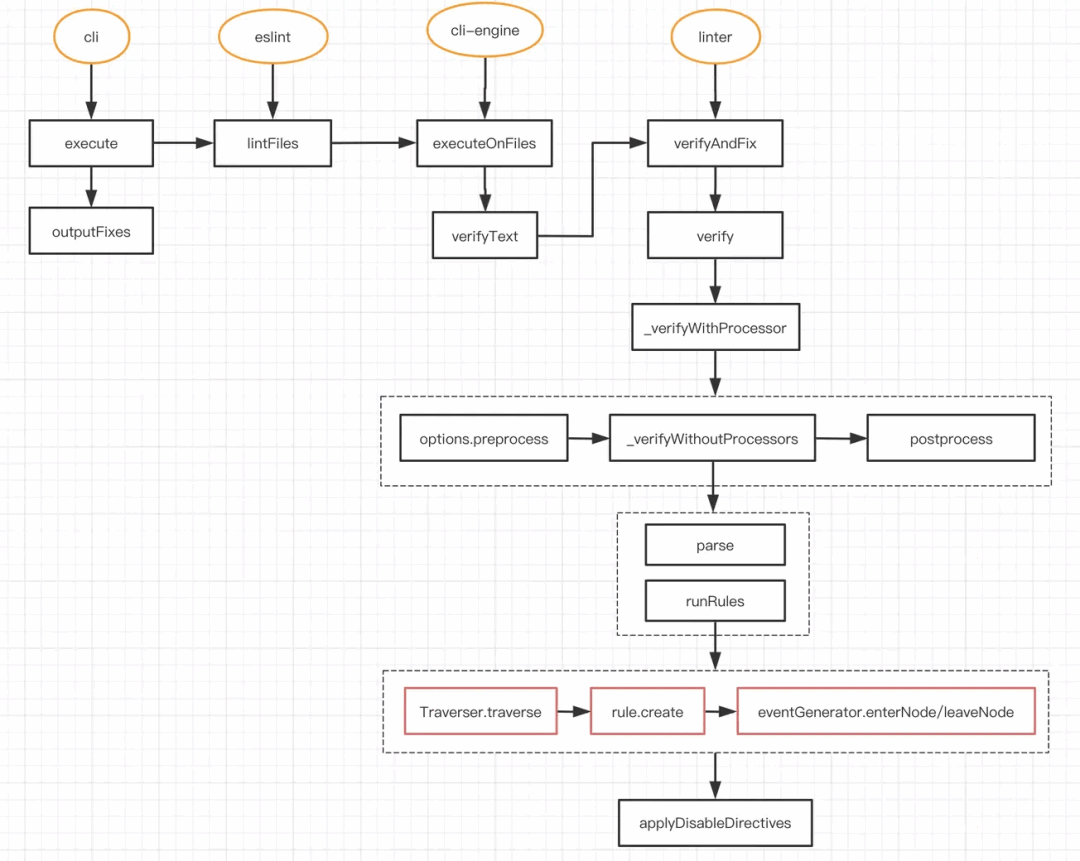

ESLint 执行的调用栈
eslint
的主要代码执行逻辑流程如下:
- 解析命令行参数,校验参数正确与否及打印相关信息;
- 根据配置实例一个 engine 对象 CLIEngine 实例;
engine.executeOnFiles
读取源代码进行检查,返回报错信息和修复结果。
1const cli = {2 /**3 * Executes the CLI based on an array of arguments that is passed in.4 * @param {string|Array|Object} args The arguments to process.5 * @param {string} [text] The text to lint (used for TTY).6 * @returns {Promise<number>} The exit code for the operation.7 */8 async execute(args, text) {9 if (Array.isArray(args)) {10 debug("CLI args: %o", args.slice(2));135 collapsed lines
11 }12
13 /** @type {ParsedCLIOptions} */14 let options;15
16 try {17 options = CLIOptions.parse(args);18 } catch (error) {19 log.error(error.message);20 return 2;21 }22
23 const files = options._;24 const useStdin = typeof text === "string";25
26 if (options.help) {27 log.info(CLIOptions.generateHelp());28 return 0;29 }30 if (options.version) {31 log.info(RuntimeInfo.version());32 return 0;33 }34 if (options.envInfo) {35 try {36 log.info(RuntimeInfo.environment());37 return 0;38 } catch (err) {39 log.error(err.message);40 return 2;41 }42 }43
44 if (options.printConfig) {45 if (files.length) {46 log.error(47 "The --print-config option must be used with exactly one file name."48 );49 return 2;50 }51 if (useStdin) {52 log.error(53 "The --print-config option is not available for piped-in code."54 );55 return 2;56 }57
58 const engine = new ESLint(translateOptions(options));59 const fileConfig = await engine.calculateConfigForFile(60 options.printConfig61 );62
63 log.info(JSON.stringify(fileConfig, null, " "));64 return 0;65 }66
67 debug(`Running on ${useStdin ? "text" : "files"}`);68
69 if (options.fix && options.fixDryRun) {70 log.error(71 "The --fix option and the --fix-dry-run option cannot be used together."72 );73 return 2;74 }75 if (useStdin && options.fix) {76 log.error(77 "The --fix option is not available for piped-in code; use --fix-dry-run instead."78 );79 return 2;80 }81 if (options.fixType && !options.fix && !options.fixDryRun) {82 log.error(83 "The --fix-type option requires either --fix or --fix-dry-run."84 );85 return 2;86 }87
88 const engine = new ESLint(translateOptions(options));89 let results;90
91 if (useStdin) {92 results = await engine.lintText(text, {93 filePath: options.stdinFilename,94 warnIgnored: true,95 });96 } else {97 results = await engine.lintFiles(files);98 }99
100 if (options.fix) {101 debug("Fix mode enabled - applying fixes");102 await ESLint.outputFixes(results);103 }104
105 let resultsToPrint = results;106
107 if (options.quiet) {108 debug("Quiet mode enabled - filtering out warnings");109 resultsToPrint = ESLint.getErrorResults(resultsToPrint);110 }111
112 if (113 await printResults(114 engine,115 resultsToPrint,116 options.format,117 options.outputFile118 )119 ) {120 // Errors and warnings from the original unfiltered results should determine the exit code121 const { errorCount, fatalErrorCount, warningCount } =122 countErrors(results);123
124 const tooManyWarnings =125 options.maxWarnings >= 0 && warningCount > options.maxWarnings;126 const shouldExitForFatalErrors =127 options.exitOnFatalError && fatalErrorCount > 0;128
129 if (!errorCount && tooManyWarnings) {130 log.error(131 "ESLint found too many warnings (maximum: %s).",132 options.maxWarnings133 );134 }135
136 if (shouldExitForFatalErrors) {137 return 2;138 }139
140 return errorCount || tooManyWarnings ? 1 : 0;141 }142
143 return 2;144 },145};
可以看到 eslint 实际上是在执行 engine.lintFiles(files)
方法:
1async lintFiles(patterns) {2 if (!isNonEmptyString(patterns) && !isArrayOfNonEmptyString(patterns)) {3 throw new Error("'patterns' must be a non-empty string or an array of non-empty strings");4 }5 const { cliEngine } = privateMembersMap.get(this);6
7 return processCLIEngineLintReport(8 cliEngine,9 cliEngine.executeOnFiles(patterns)10 );1 collapsed line
11}
engine.lintFiles(files)
方法内部则是在执行 executeOnFiles(patterns)
方法来进行文件内容的校验.
executeOnFiles(patterns) 函数
executeOnFiles(patterns)
函数主要作用是对一组文件和目录名称执行当前配置. 看一下它做了什么:
1executeOnFiles(patterns) {2 const {3 cacheFilePath,4 fileEnumerator,5 lastConfigArrays,6 lintResultCache,7 linter,8 options: {9 allowInlineConfig,10 cache,111 collapsed lines
11 cwd,12 fix,13 reportUnusedDisableDirectives14 }15 } = internalSlotsMap.get(this);16 const results = [];17 const startTime = Date.now();18
19 // Clear the last used config arrays.20 lastConfigArrays.length = 0;21
22 // Delete cache file; should this do here?23 if (!cache) {24 try {25 fs.unlinkSync(cacheFilePath);26 } catch (error) {27 const errorCode = error && error.code;28
29 // Ignore errors when no such file exists or file system is read only (and cache file does not exist)30 if (errorCode !== "ENOENT" && !(errorCode === "EROFS" && !fs.existsSync(cacheFilePath))) {31 throw error;32 }33 }34 }35
36 // Iterate source code files.37 for (const { config, filePath, ignored } of fileEnumerator.iterateFiles(patterns)) {38 if (ignored) {39 results.push(createIgnoreResult(filePath, cwd));40 continue;41 }42
43 /*44 * Store used configs for:45 * - this method uses to collect used deprecated rules.46 * - `getRules()` method uses to collect all loaded rules.47 * - `--fix-type` option uses to get the loaded rule's meta data.48 */49 if (!lastConfigArrays.includes(config)) {50 lastConfigArrays.push(config);51 }52
53 // Skip if there is cached result.54 if (lintResultCache) {55 const cachedResult =56 lintResultCache.getCachedLintResults(filePath, config);57
58 if (cachedResult) {59 const hadMessages =60 cachedResult.messages &&61 cachedResult.messages.length > 0;62
63 if (hadMessages && fix) {64 debug(`Reprocessing cached file to allow autofix: ${filePath}`);65 } else {66 debug(`Skipping file since it hasn't changed: ${filePath}`);67 results.push(cachedResult);68 continue;69 }70 }71 }72
73 // Do lint.74 const result = verifyText({75 text: fs.readFileSync(filePath, "utf8"),76 filePath,77 config,78 cwd,79 fix,80 allowInlineConfig,81 reportUnusedDisableDirectives,82 fileEnumerator,83 linter84 });85
86 results.push(result);87
88 /*89 * Store the lint result in the LintResultCache.90 * NOTE: The LintResultCache will remove the file source and any91 * other properties that are difficult to serialize, and will92 * hydrate those properties back in on future lint runs.93 */94 if (lintResultCache) {95 lintResultCache.setCachedLintResults(filePath, config, result);96 }97 }98
99 // Persist the cache to disk.100 if (lintResultCache) {101 lintResultCache.reconcile();102 }103
104 debug(`Linting complete in: ${Date.now() - startTime}ms`);105 let usedDeprecatedRules;106
107 return {108 results,109 ...calculateStatsPerRun(results),110
111 // Initialize it lazily because CLI and `ESLint` API don't use it.112 get usedDeprecatedRules() {113 if (!usedDeprecatedRules) {114 usedDeprecatedRules = Array.from(115 iterateRuleDeprecationWarnings(lastConfigArrays)116 );117 }118 return usedDeprecatedRules;119 }120 };121}
verifyText() 函数
verifyText()
则是调用了 linter.verifyAndFix()
函数.
verifyAndFix() 函数主要作用是对一组文件和目录名称执行当前配置
这个函数是核心函数,顾名思义 verify & fix 代码核心处理逻辑是通过一个 do while 循环控制;以下两个条件会打断循环
- 没有更多可以被 fix 的代码了
- 循环超过十次
- 其中 verify 函数对源代码文件进行代码检查,从规则维度返回检查结果数组
- applyFixes 函数拿到上一步的返回,去 fix 代码
- 如果设置了可以 fix,那么使用 fix 之后的结果 代替原本的 text
在 verify 过程中,会调用 parse 函数,把代码转换成 AST
1// 默认的ast解析是espree2const espree = require("espree");3
4let parserName = DEFAULT_PARSER_NAME; // 'espree'5let parser = espree;
parse 函数会返回两种结果
{success: false, error: Problem}
解析 AST 成功{success: true, sourceCode: SourceCode}
解析 AST 失败
最终会调用 runRules() 函数
这个函数是代码检查和修复的核心方法,会对代码进行规则校验。
- 创建一个 eventEmitter 实例。是 eslint 自己实现的很简单的一个事件触发类 on 监听 emit 触发;
- 递归遍历 AST,深度优先搜索,把节点添加到 nodeQueue。一个 node 放入两次,类似于 A->B->C->…->C->B->A;
- 遍历 rules,调用 rule.create()(rules 中提到的 meta 和 create 函数) 拿到事件(selector)映射表,添加事件监听。
- 包装一个 ruleContext 对象,会通过参数,传给 rule.create(),其中包含 report() 函数,每个 rule 的 handler 都会执行这个函数,抛出问题;
- 调用 rule.create(ruleContext), 遍历其返回的对象,添加事件监听;(如果需要 lint 计时,则调用 process.hrtime()计时);
- 遍历 nodeQueue,触发当前节点事件的回调,调用 NodeEventGenerator 实例里面的函数,触发 emitter.emit()。
1// 1. 创建一个 eventEmitter 实例。是eslint自己实现的很简单的一个事件触发类 on监听 emit触发2const emitter = createEmitter();3
4// 2. 递归遍历 AST,把节点添加到 nodeQueue。一个node放入两次 A->B->C->...->C->B->A5Traverser.traverse(sourceCode.ast, {6 enter(node, parent) {7 node.parent = parent;8 nodeQueue.push({ isEntering: true, node });9 },10 leave(node) {106 collapsed lines
11 nodeQueue.push({ isEntering: false, node });12 },13 visitorKeys: sourceCode.visitorKeys,14});15
16// 3. 遍历 rules,调用 rule.create() 拿到事件(selector)映射表,添加事件监听。17// (这里的 configuredRules 是我们在 .eslintrc.json 设置的 rules)18Object.keys(configuredRules).forEach((ruleId) => {19 const severity = ConfigOps.getRuleSeverity(configuredRules[ruleId]);20
21 // 通过ruleId拿到每个规则对应的一个对象,里面有两部分 meta & create 见 【编写rule】22 const rule = ruleMapper(ruleId);23
24 // ....25
26 const messageIds = rule.meta && rule.meta.messages;27 let reportTranslator = null;28 // 这个对象比较重要,会传给 每个规则里的 rule.create函数29 const ruleContext = Object.freeze(30 Object.assign(Object.create(sharedTraversalContext), {31 id: ruleId,32 options: getRuleOptions(configuredRules[ruleId]),33 // 每个rule的 handler 都会执行这个函数,抛出问题34 report(...args) {35 if (reportTranslator === null) {36 reportTranslator = createReportTranslator({37 ruleId,38 severity,39 sourceCode,40 messageIds,41 disableFixes,42 });43 }44 const problem = reportTranslator(...args);45 // 省略一堆错误校验46 // ....47 // 省略一堆错误校验48
49 // lint的结果50 lintingProblems.push(problem);51 },52 })53 );54 // 包装了一下,其实就是 执行 rule.create(ruleContext);55 // rule.create(ruleContext) 会返回一个对象,key就是事件名称56 const ruleListeners = createRuleListeners(rule, ruleContext);57
58 /**59 * 在错误信息中加入ruleId60 * @param {Function} ruleListener 监听到每个node,然后对应的方法rule.create(ruleContext)返回的对象中对应key的value61 * @returns {Function} ruleListener wrapped in error handler62 */63 function addRuleErrorHandler(ruleListener) {64 return function ruleErrorHandler(...listenerArgs) {65 try {66 return ruleListener(...listenerArgs);67 } catch (e) {68 e.ruleId = ruleId;69 throw e;70 }71 };72 }73
74 // 遍历 rule.create(ruleContext) 返回的对象,添加事件监听75 Object.keys(ruleListeners).forEach((selector) => {76 const ruleListener = timing.enabled77 ? timing.time(ruleId, ruleListeners[selector]) // 调用process.hrtime()计时78 : ruleListeners[selector];79 // 对每一个 selector 进行监听,添加 callback80 emitter.on(selector, addRuleErrorHandler(ruleListener));81 });82});83
84// 只有顶层node类型是Program才进行代码路径分析85const eventGenerator =86 nodeQueue[0].node.type === "Program"87 ? new CodePathAnalyzer(88 new NodeEventGenerator(emitter, {89 visitorKeys: sourceCode.visitorKeys,90 fallback: Traverser.getKeys,91 })92 )93 : new NodeEventGenerator(emitter, {94 visitorKeys: sourceCode.visitorKeys,95 fallback: Traverser.getKeys,96 });97
98// 4. 遍历 nodeQueue,触发当前节点事件的回调。99// 这个 nodeQueue 是前面push进所有的node,分为 入口 和 离开100nodeQueue.forEach((traversalInfo) => {101 currentNode = traversalInfo.node;102 try {103 if (traversalInfo.isEntering) {104 // 调用 NodeEventGenerator 实例里面的函数105 // 在这里触发 emitter.emit()106 eventGenerator.enterNode(currentNode);107 } else {108 eventGenerator.leaveNode(currentNode);109 }110 } catch (err) {111 err.currentNode = currentNode;112 throw err;113 }114});115// lint的结果116return lintingProblems;
执行节点匹配 NodeEventGenerator
在该类里面,会根据前面 nodeQueque 分别调用 进入节点和离开节点,来区分不同的调用时机。
1// 进入节点 把这个node的父节点push进去2enterNode(node) {3 if (node.parent) {4 this.currentAncestry.unshift(node.parent);5 }6 this.applySelectors(node, false);7}8// 离开节点9leaveNode(node) {10 this.applySelectors(node, true);10 collapsed lines
11 this.currentAncestry.shift();12}13// 进入还是离开 都执行的这个函数14// 调用这个函数,如果节点匹配,那么就触发事件15applySelector(node, selector) {16 if (esquery.matches(node, selector.parsedSelector, this.currentAncestry, this.esqueryOptions)) {17 // 触发事件,执行 handler18 this.emitter.emit(selector.rawSelector, node);19 }20}
总体运行机制
概括来说就是,ESLint 会遍历前面说到的 AST,然后在遍历到「不同的节点」或者「特定的时机」的时候,触发相应的处理函数,然后在函数中,可以抛出错误,给出提示。
